                                                                                  Forklift Fixture Vacuum Lifter

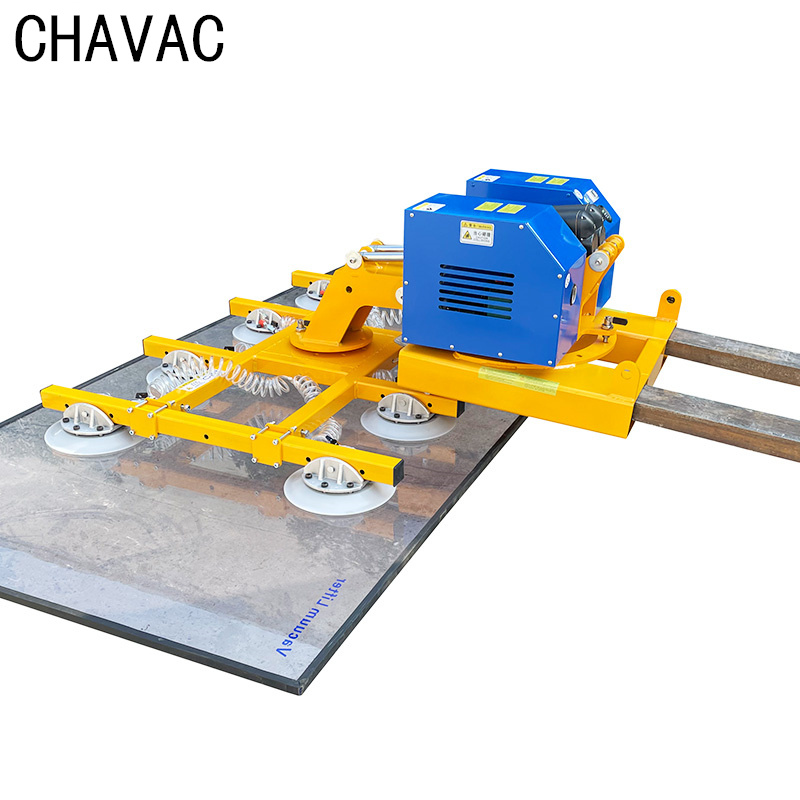

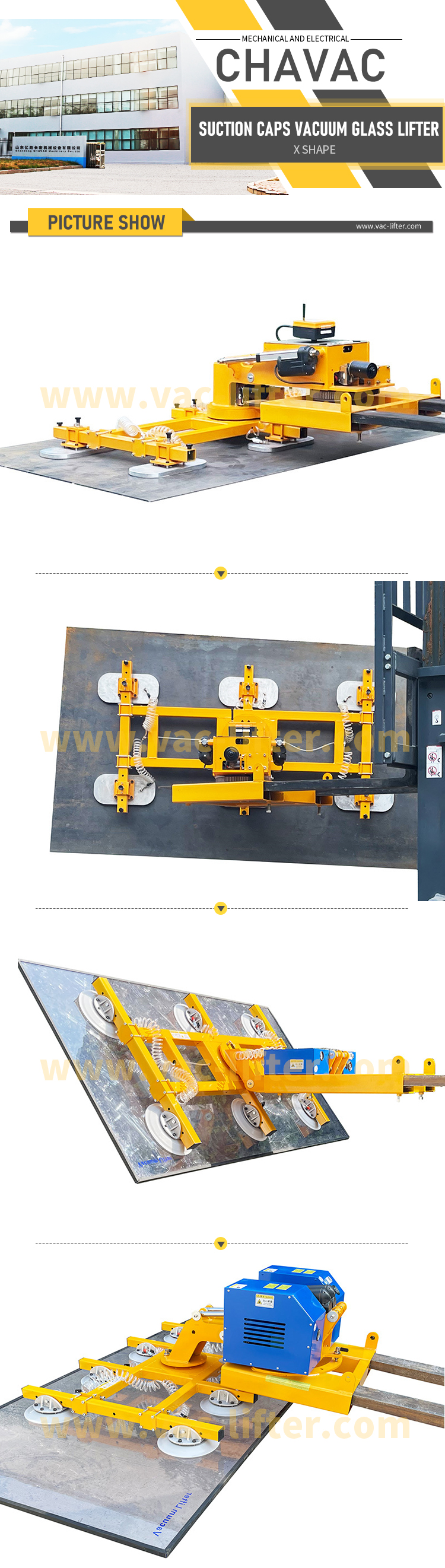

Multi-function glass handling equipment with flexible structure and simple operation. Which can improve the production efficiency and reliability of construction sites and manufacturing workshops. Our equipment has a variety of assembly forms. It is able to assemble in various ways in accordance with demand. By changing position of suckers can realize absorbing glass with different shapes and dimensions. All functions can be done by hand,rotate 360°(manual)and tilt90°(manual),optional remote operation with electricity, safe and reliable.



It is one of the most comonly used equipments for curtain wall installation and glass deep processing enterprises. The equipment components are all internationally renowned brands to ensure the quality and safety of equipment. The normal power supply voltage of the equipment is 110V to 220V , DC 12V battery. The device can automatically motor the vacuum and power systems to maximize safety and efficiency while simplifying maintenance and repairs.

Parameters



ModelType

GL-SC-300H

GL-SC-400H

GL-SC-500H

GL-SC-600H

GL-SC-800H

Load Capacity

300kg

400kg

500kg

600kg

800kg

Rubber Suction Cap

Φ250X4pcs

Φ300X4pcs

Φ300X6pcs

Φ300X6pcs

Φ300X6pcs

Battery ( V/AH)

12/20 *2

12/20 *2

12/20 *2

12/20 *2

12/20 *2

Charger (V/AH)

24/6

24/6

24/6

24/6

24/6

Frame size

1000*800

1000*800

1350*1000

1350*1000

1350*1000

Frame extension size

1000*800

1000*800

2110*1000

2110*1000

2110*1000

Lifting Material

Sheet Metal / Glass Panel

Vertical Flip

Electric

Rotation

360°manual (Electric is Extra Charged)

Left & Right Tilt

90° manual (Electric is Extra Charged)

Packing Size(mm)

1100*800*500

1100*800*500

1240*1080*1130

1240*1080*1130

1240*1080*1130



Optional electric or battery power,give free spare parts

Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.
