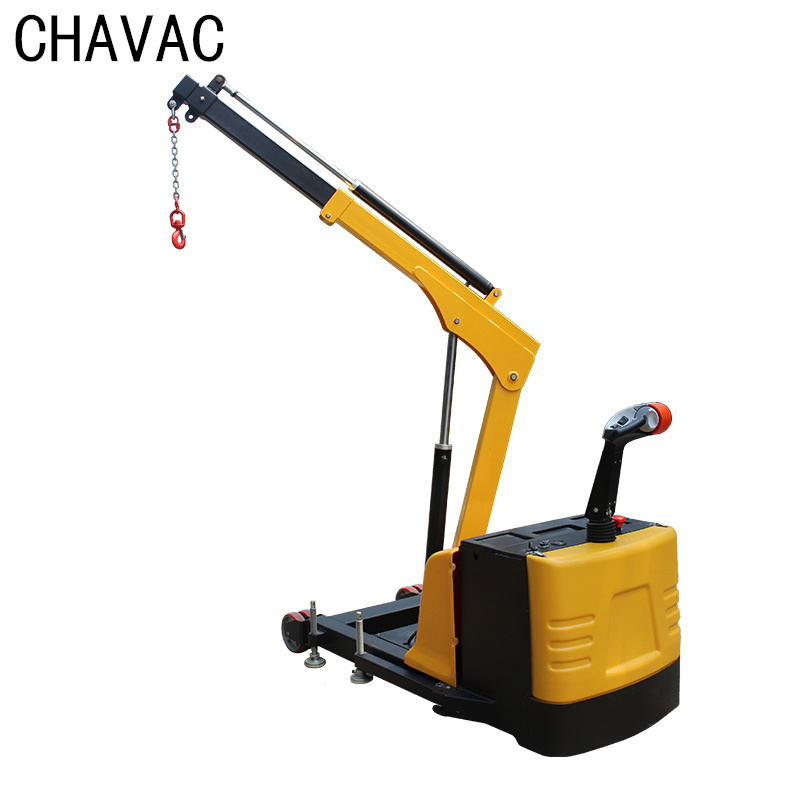

1000kg 2000kg electric crane
CHAVAC Electric Cranes(power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hours operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch.
Parameters
Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.
Model Type | EPFC-25 | EPFC-25-AA | EPFC-CB-15 | EPSC900R Electric rotation 240° |
Horizontal Reach ( Extended 2 stages) | 1280+610+610mm | 1280+610+610mm | 1220+610+610mm | 1280mm+610mm+610mm |
Load Capacity | 1200kg | 1200kg(1280mm) | 700kg(1220mm) | 900kg(1280mm) |
Load Capacity (stage 1) | 600kg(1280~1890mm) | 600kg(1280~1890mm) | 400kg(1220~1830mm) | 450kg(1280~1890mm) |
Load Capacity (stage 2) | 300kg(1890~2500mm) | 300kg(1890~2500mm) | 200kg(1890~2440mm) | 250KG(1890~2500mm) |
Max Lifting Height | 3570mm | 3540mm | 3560mm | 3180mm |
Min Lifting Height | 960mm | 935mm | 950mm | 1410mm |
Retracted size(W*L*H) | 1920*760*1600mm | 1865*1490*1570mm | 2595*760*1580mm | 2000*1854*1550mm |
Arm Electric Rotation | / | / | / | 120°left/right |
Products Features
1) Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely.
2) 24V DC drive and lift motor handles heavy-duty jobs.
Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn.
3) Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle.
4) Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge.
5) Poly-on-steel steer and load wheels.
6) 3-4 hour operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch
-We are professional manufacturer of vacuum lifting equipment, we can provide you with a CE certificate (our equipment meets EU standards)
-We can provide you with a certificate of origin, allowing you to reduce taxes at the port of destination.
-Free professional design for each customer especially.
-Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
-We have a large number of equipment standard parts, which can be shipped quickly, and can also produce the equipment you want according to your requirements.
-All our equipment is delivered as a complete machine, you can use it immediately after your receive it, without complicated assembly.
-Provide 24hours free technical support! At least one year warranty and lifetime maintenance.
-Flexible payment method such as TT , LC, Paypal, Western Union
