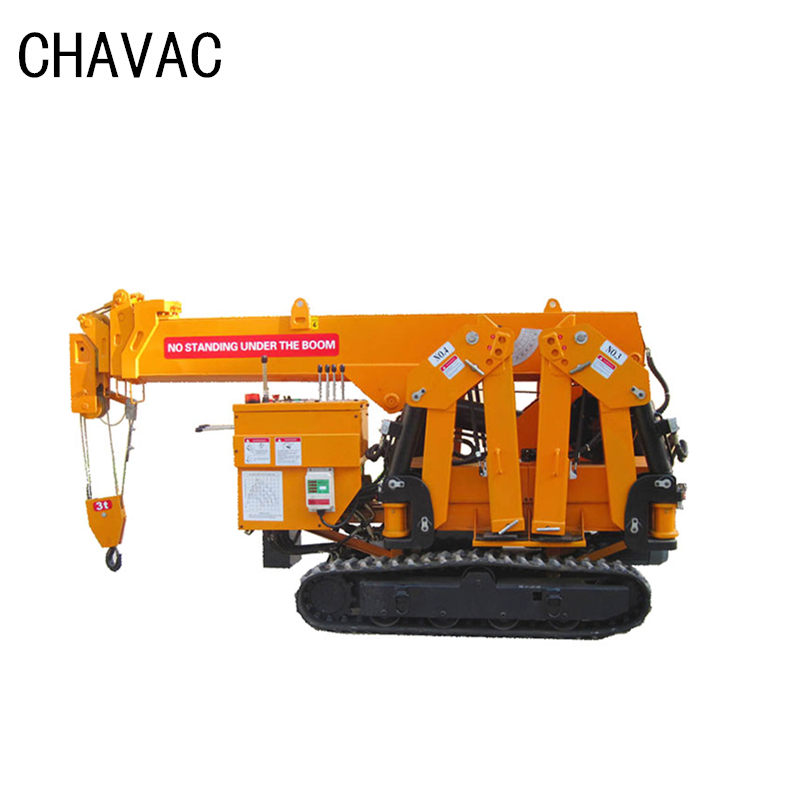

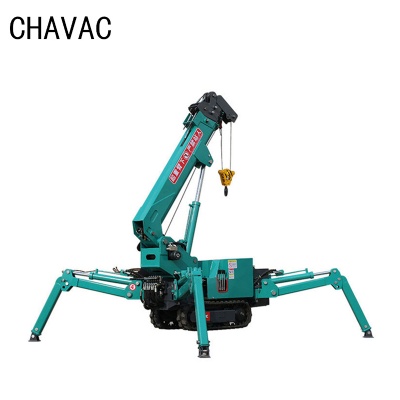

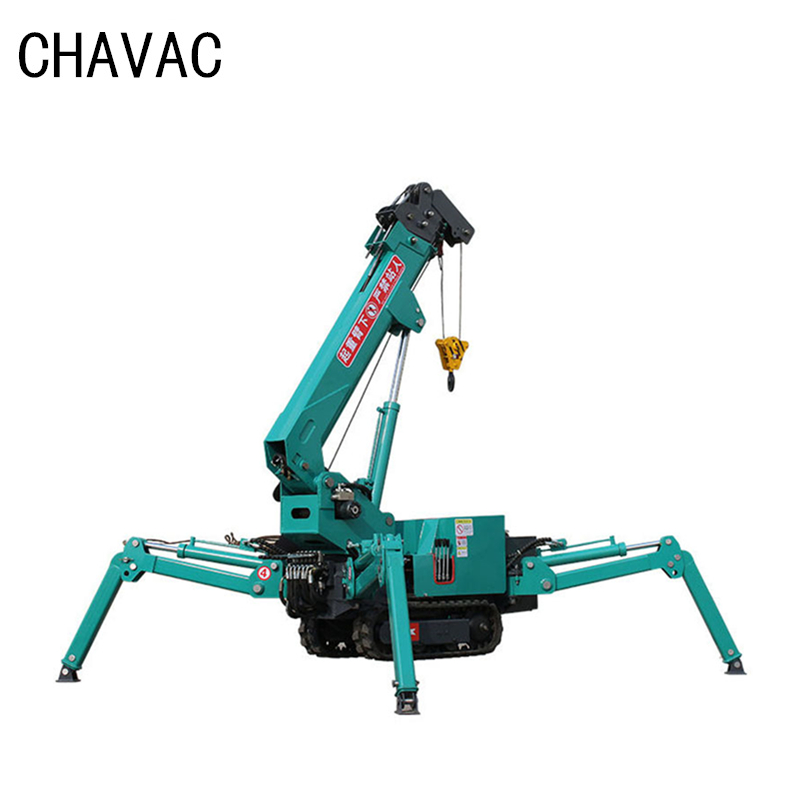

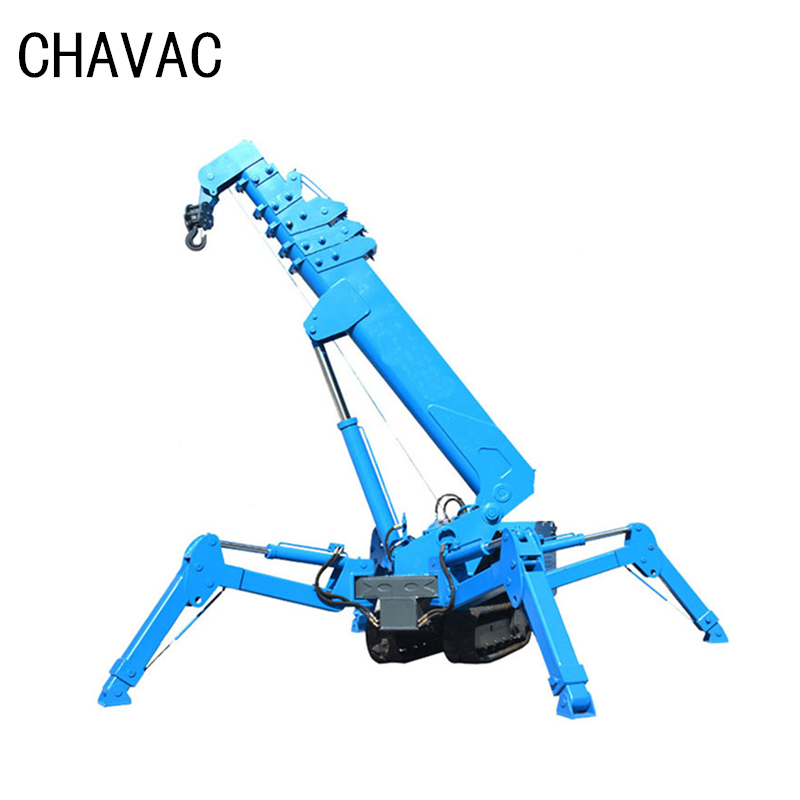

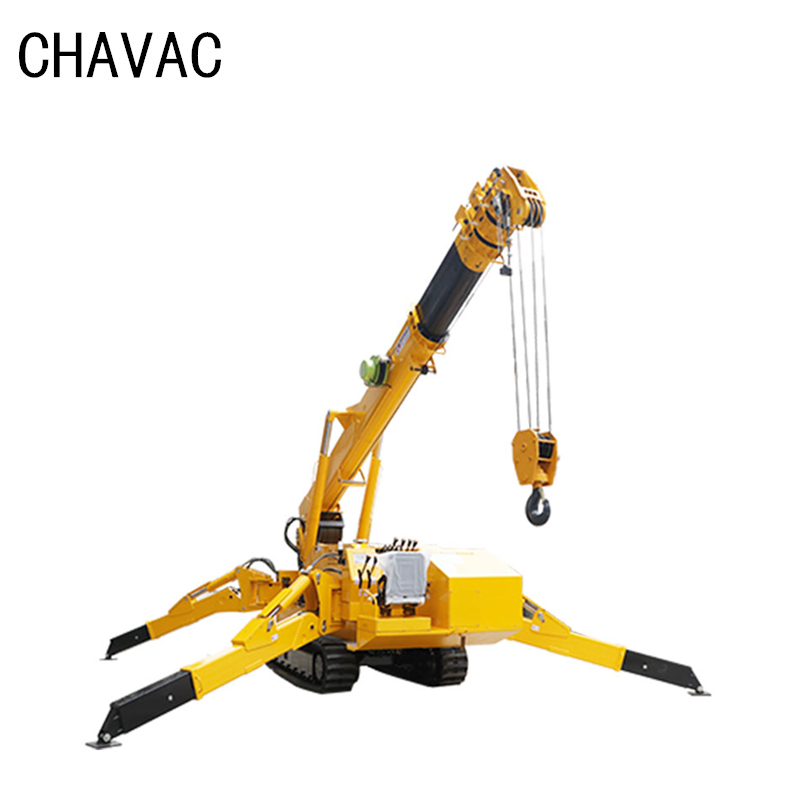

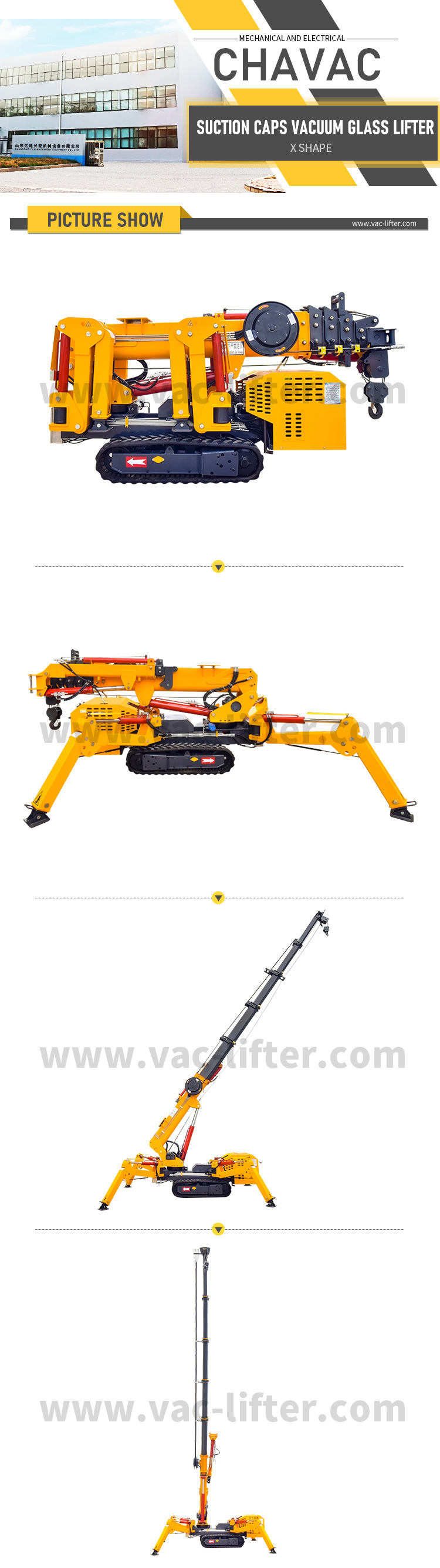

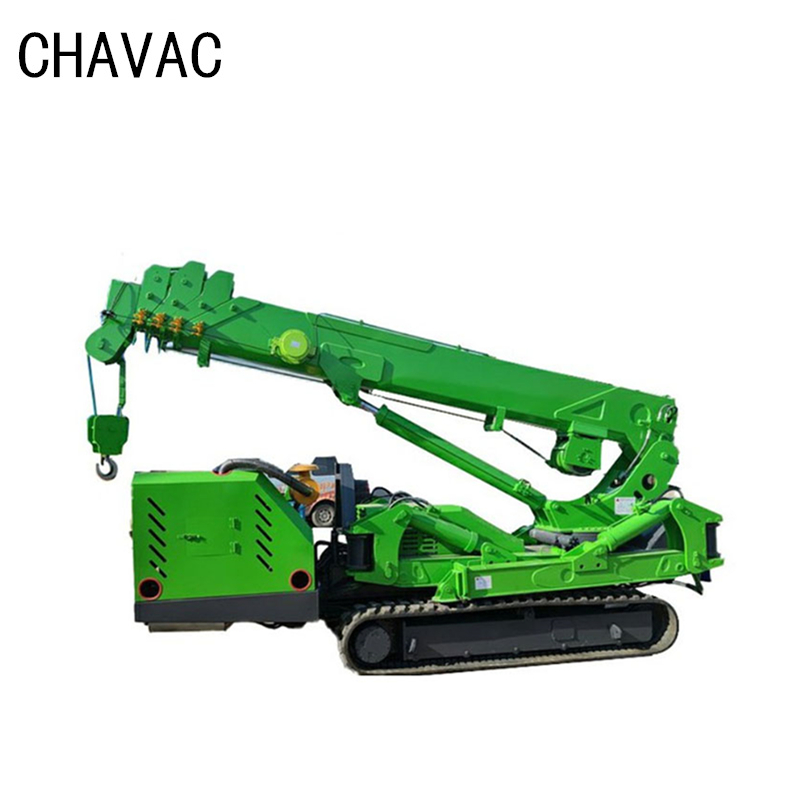

High Configuration Spider Crane
CHAVAC Crawler Spider Crane combines the space-saving qualities of a spider crane with the powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compact equipment offers an alternate solution to the difficulties associated with lifting in areas with restricted access.
High Configuration Spider Crane
CHAVAC Crawler Spider Crane combines the space-saving qualities of a spider crane with the powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compact equipment offers an alternate solution to the difficulties associated with lifting in areas with restricted access.
Model Type | EPFC1.2 | EPFC2.0 | EPFC3.0 | EPFC5.0 | EPFC8.0 | EPFC12.0 | |
Load capacity | 1.2 ton | 2 ton | 3 ton | 5 ton | 8 ton | 12 ton | |
Max ground lift | 5.8m | 5.98m | 9.9m | 16.8m | 18.5m | 23.5m | |
Max operating radius | 5m×0.3t | 4.7m×0.4t | 8.6m×0.4t | 15.3m×0.5t | 16.8m×0.35t | 21.3m×0.5t | |
Walking device | Walking mode | Hydraulic motor drive, two speed | |||||
Walking speed | 0-2.5km/h | 0-2.0km/h | 0-2.5km/h | 0-2.5km/h | 0-2.5km/h | 0-3km/h | |
Climbing ability | 20°(36%) | ||||||
Engine | Start mode | Electric start | |||||
Startup performance | -5°C~40°C | ||||||
Engine | Gasoline | Diesel/AC | Diesel/AC | Diesel/AC | Diesel/AC | Diesel/AC | |
Battery capacity | 12v 45AH | 12v 45AH | 12v 45AH | 12v 45AH | 12v 45AH | 24v 45AH | |
Vehicle Size(e( L*W*H)) | 2095 * 600 * 1450mm | 2200 * 950 * 1650mm | 2950 *980 * 1560mm | 4750 *1500 * 2200mm | 5000 *1600 * 2200mm | 5700 *1800 * 2400mm | |
weight(KG) | 1800kg | 2000kg | 2500kg | 6500kg | 7800kg | 11500kg | |
Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.

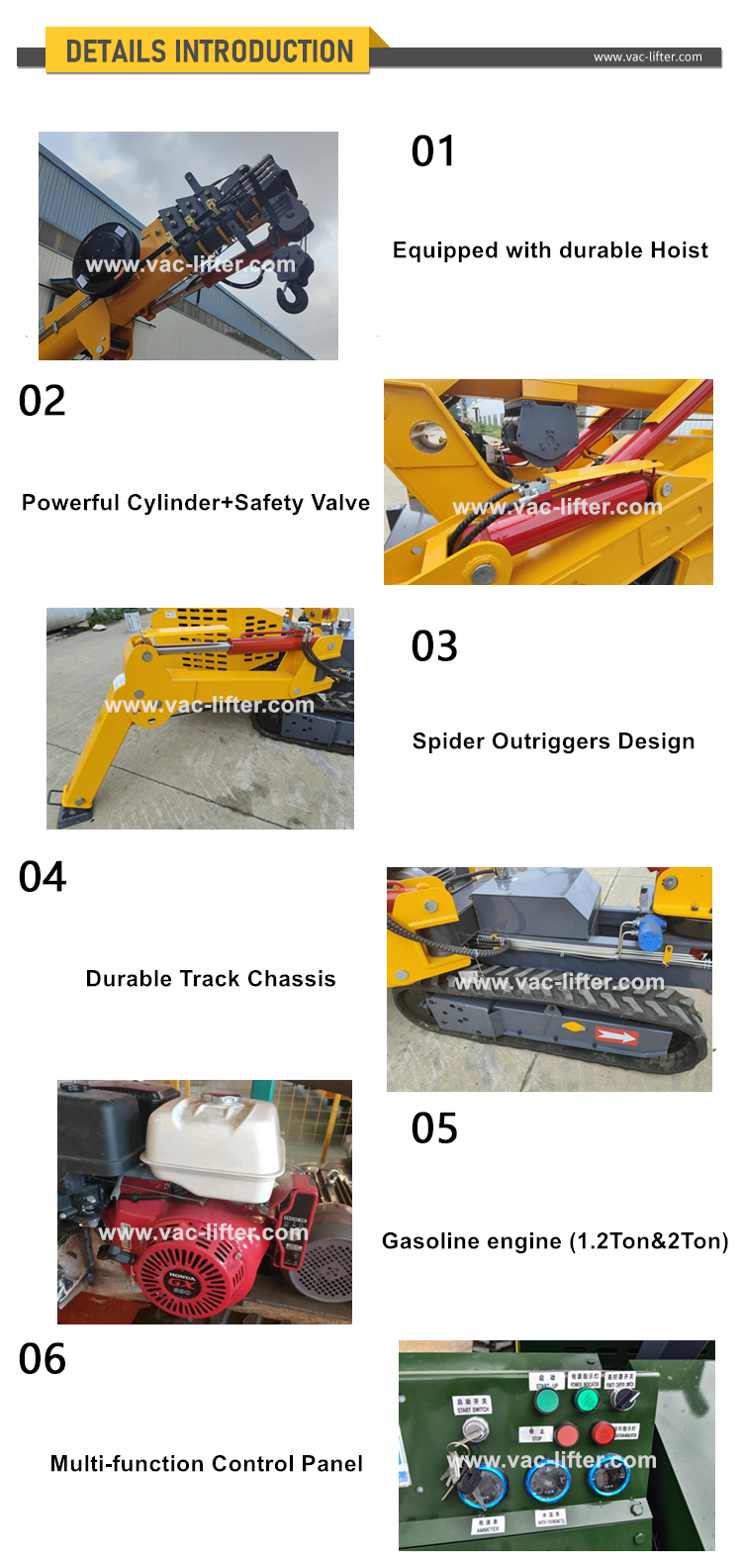

1) The Crawler Spider Crane for moving loads quickly, easily, and safely.
2) Spider crane, suitable for occasions with limited space.
3) The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4) The main arm is 4-5 sections. The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm.
5) The telescoping limit of the boom uses the double insurance of the marking line and the alarm.
SHANDONG YILU MACHINERY EQUIPMENT CO., LTD is quality conscious and professional lifting equipment manufacturer, supply customers qualified machines. We not only supply complete machine, but our professional engineer team also provide right facility configuration, accordingly customers’ various production requirements and estimated investment. And we’ll provide essential industrial design and technical guidance as well.

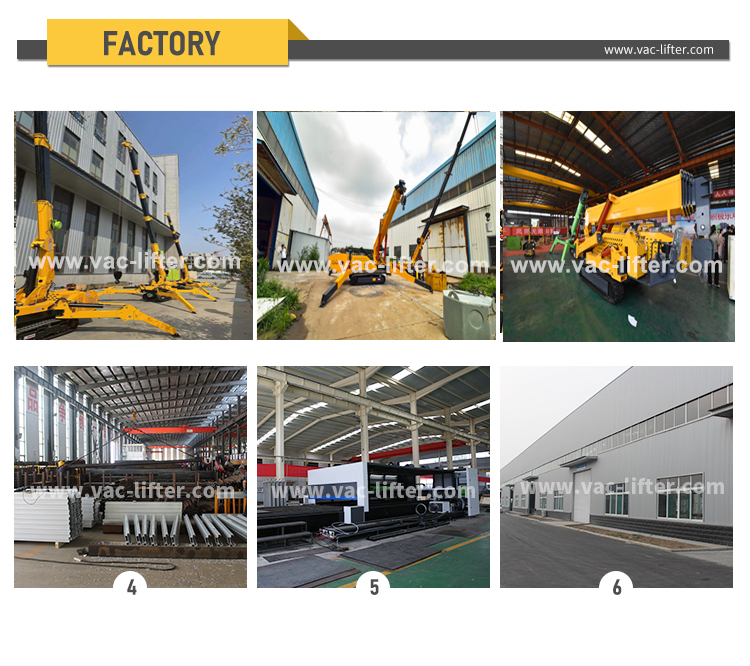

Our company's factory located in Qingdao, Shandong , where economy, beautiful environment, and prosperous tourism industry , there are also have Qingdao Port which is one of the biggest international port in China. These will provides a strong guarantee for transportation of goods.
Our product lines cover material handling equipment , lifting equipment and OEM products are also available. Our products have been exported all over the world and have enjoyed a high reputation.
Just tell us what you need, our professional team members will give you suggestion about the most suitable items.
We "care what you care", and supply products and service beyond expectation.
