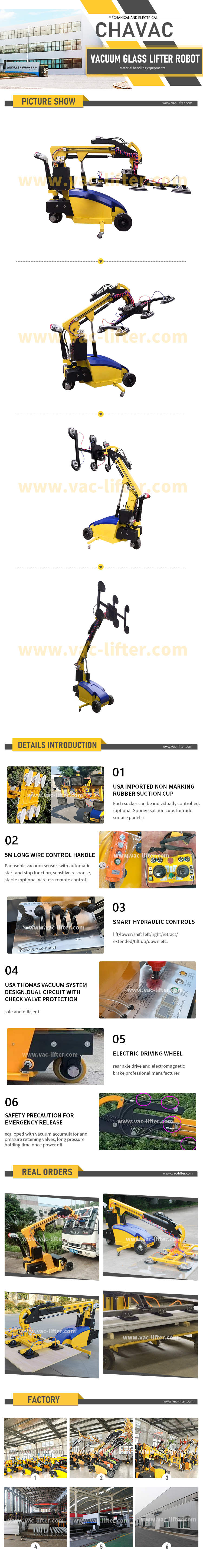

Big Wheels Electric Glass Lifter Trolley
YILUCHANGHONG Brand Vacuum Lifter are specially designed for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.
| Model Type | GL-LD-600A | GL-LD-800A | |
| Load Capacity | 600kg (retract),300kg (extend) | 800kg (retract),400kg (extend) | |
| Lifting Height | 3700mm | 5000mm | |
| QTY of Suction Cap | 6pcs | 8pcs | |
| Rubber Suction Cap | Ø300mm | Ø300mm | |
| Maintenance-free Battery | 2x12V/150AH | 2x12V/160AH | |
| Battery Charger | Smart Charger 110v~240v | Smart Charger 110v~240v | |
| Drive motor | 3KW | 3KW | |
| Lifting Motor | 24V/2KW/35L | 24V/2.2W/35L | |
| Wheel Type | Solid rubber wheel | Solid rubber wheel | |
| Packing Size(mm) | 2970*1080*1720 | 3200*1280*2300 | |
| N.W/G.W | 1750/1850kg | 1850/1950kg | |
| Loading Qty | 1x20/40GP: 6/12SETS | ||
Product Description
GL-LD series Vacuum Lifter: small size, easy to transport.
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.
1. Lifting capacity 350kg/600kg (175kg/300kg when lifting arm is fully extended)
2. Manual 360degree rotation
3. Electric lift up to 3.5M
4. Weight of machine 660kg/1000kg
