Metal lifter vacuum stone lifting equipment

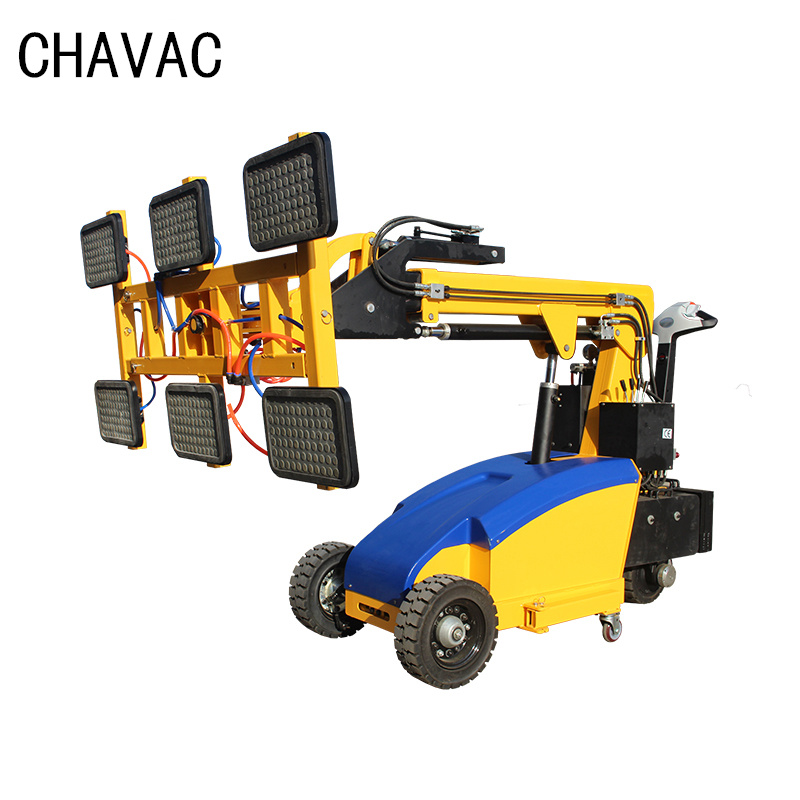

CHAVAC Vacuum Lifter  Robot is specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. It is a senior machine with Front-wheel driven, which gave better road holding and friction force while driving with loads. Moreover, these models improved the controller from manual valves to remote controller,intuitive interface helped operation easier to find required function, and much helpful to the speed control as well.An extension model of machine developed for higher lifting.Various options customized for special request as well.

Parameters

Characteristic customization:

-Constant speed remote controller

-Stepless speed remote controller

-Sponge suction cups for rude surface panels

-Dual wheels,rough terrain wheels,can walk on bad situation road.Strong power, steady lifting and lowering.

Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.

1) Surface treatment: shot blasting and stoving varnish with anti-corrosion function.

2) High quality pump station makes scissor lift table lifts and fall very stable.

3) Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.

4) Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.

5) Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.

6) Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.

7) Up to American standard ANSI/ASME and Europe standard EN1570

8) Safe clearance between scissor to prevent damages during operation.

9) Brief structure make it much easier to operate and maintain.

10) Stop at the per-concerted and accurate location point.
