Counterbalance Electric Vacuum Lifter


Vacuum lifter series are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble.

Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.

EMAIL   INQUIRY

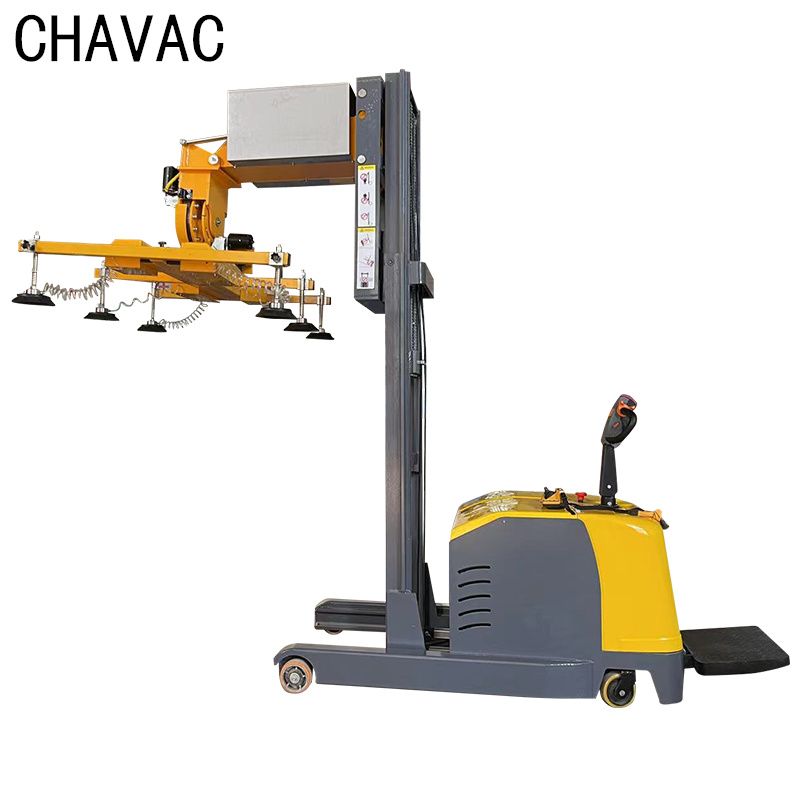

                                               Counterbalance Electric Vacuum Lifter


CHAVAC Vacuum Lifter  Robot is specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. It is a senior machine with Front-wheel driven, which gave better road holding and friction force while driving with loads. Moreover, these models improved the controller from manual valves to remote controller,intuitive interface helped operation easier to find required function, and much helpful to the speed control as well.An extension model of machine developed for higher lifting.Various options customized for special request as well.

Parameters



Model

GL-HD-4016

GL-HD-6016

GL-HD-8016

GL-HD-10016

Rated Load Capacity

400kgs

600kgs

800kgs

1000kgs

Safe Load Capacity

200kgs

300kgs

400kgs

500kgs

QTY of Suction Cups

4pcs

6pcs

8pcs

10pcs

Cup Diameter

Ø300mm

Ø300mm

Ø300mm

Ø300mm

Lifting Height

100~1600mm

100~1600mm

100~1600mm

100~1600mm

Panel Size(customized)

2440x1830mm

2440x1830mm

2440x3660mm

2440x3660mm

Load Center

650mm

650mm

650mm

950mm

Drive Motor

24V/500W

24V/500W

24V/500W

24V/700W

Hydraulic Motor

24V/2000W

24V/2000W

24V/2000W

24V/2000W

Battery

2x12V/70Ah

2x12V/70Ah

2x12V/70Ah

2x12V/100Ah

Charger

24V/10A

24V/10A

24V/10A

24V/15A

Characteristic customization:



-Customized balance wheel:

If you have no space to put the 2pcs outriggers in front,such as using it for a CNC cutting machine.We will customize it to balance wheel type.The size of wheels are produced as per requests.Operation Video on Youtube:



-Sponge suction cups for rude surface panels:

 If the surface of your panels are rude or have some air leak,you need to use sponge suction cups.The configurations,like vacuum pump,swept volume and gas tank will be enlarged .





Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.

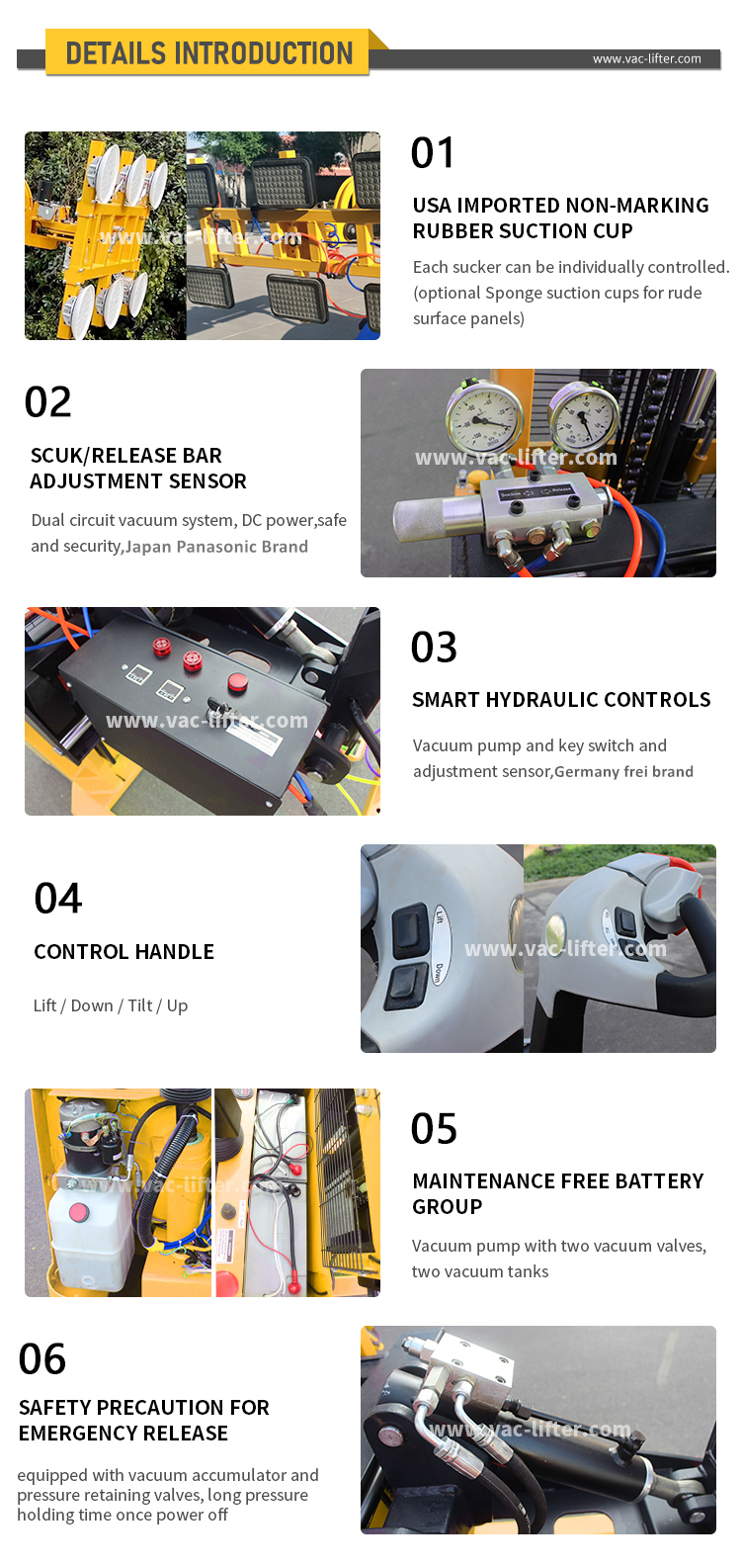

1) Dual Vacuum System. One for normal operation and one as spare system.

2) USA Curtis control system,DC24V reliable actuators for lifting, extension and tipping. efficient and precise.

3) Japan Panasonic and Taiwan Airtac Self-contained air system, and no external air source is required.

4) High quality vacuum pump,heavy duty driving wheel, hydraulic pump,as well as maintenance-free battery.

5) Integrated with pressure auto maintaining system, even if power fails, pressure remains.

6) Independent Air Inlets. Each suction cup can be disabled individually if not all are needed.

7) Self propelling,Strong power, steady lifting and lowering.

8) fine adjustment of position without driving the machine.(See above video)

9) Integrated control system secures quick,automatic positioning vertically,horizontally by a single push on a button.

10) Attractive price, staff saving, strong improvement of working environment.




Our company's factory located in Qingdao, Shandong , where economy, beautiful environment, and prosperous tourism industry , there are also have Qingdao Port which is one of the biggest international port in China. These will provides a strong guarantee for transportation of goods.



Our product lines cover material handling equipment , lifting equipment and OEM products are also available. Our products have been exported all over the world and have enjoyed a high reputation.



Just tell us what you need, our professional team members will give you suggestion about the most suitable items.



We "care what you care", and supply products and service beyond expectation.
