large suction cup for glass

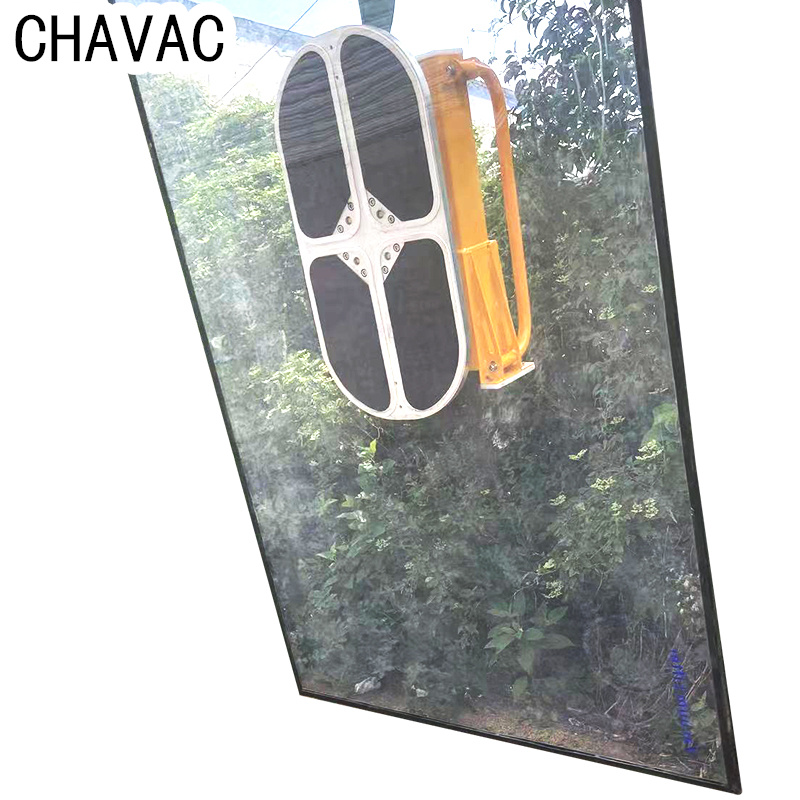

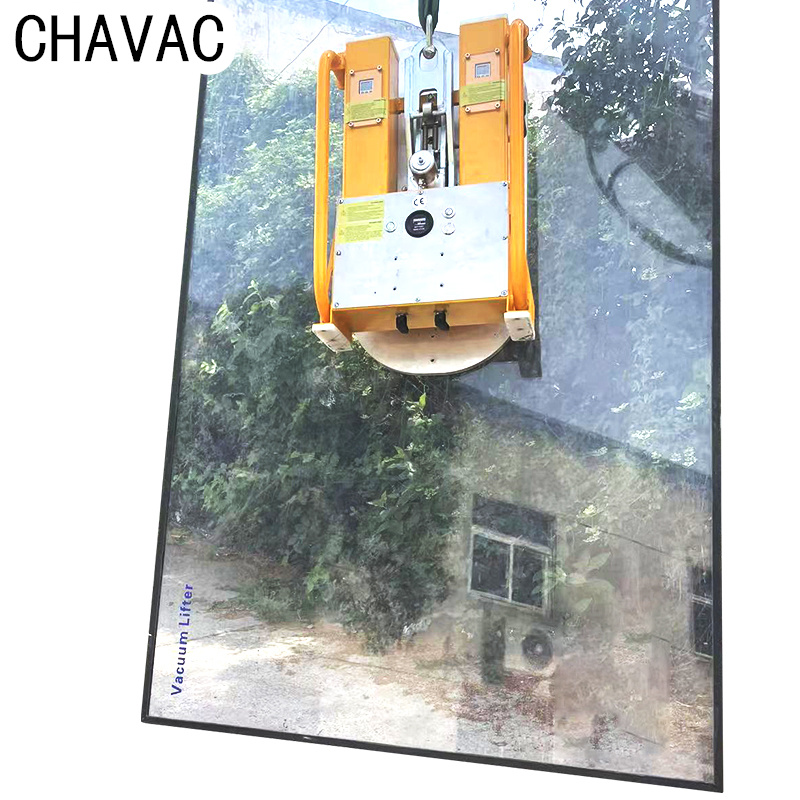

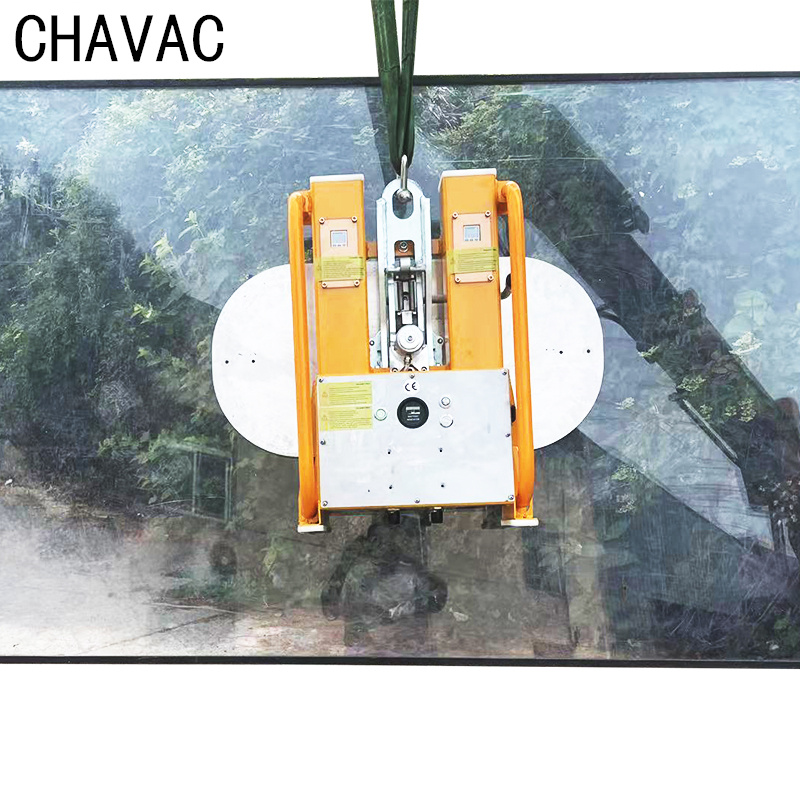

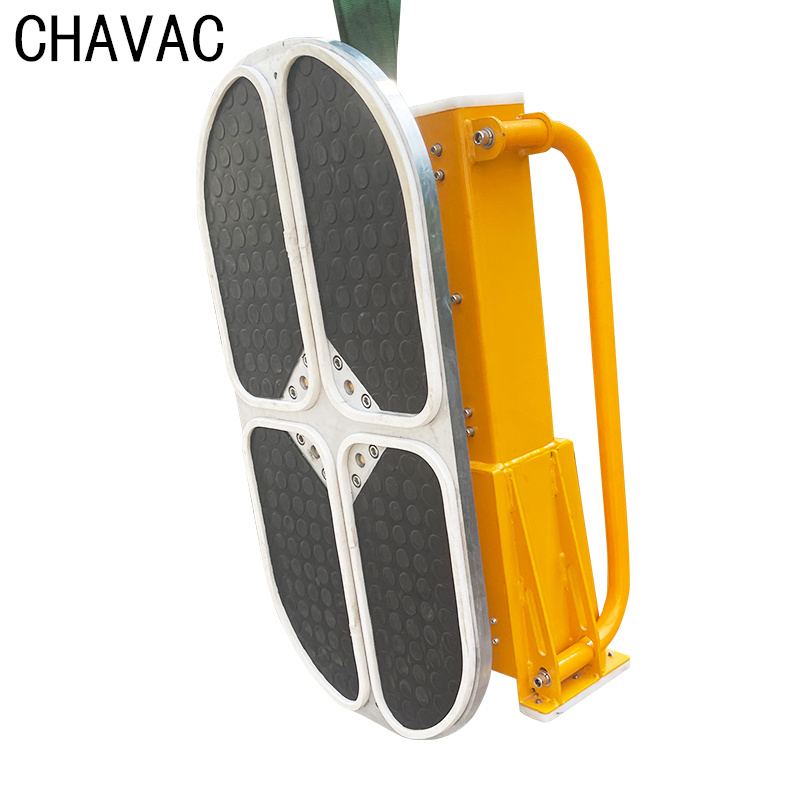

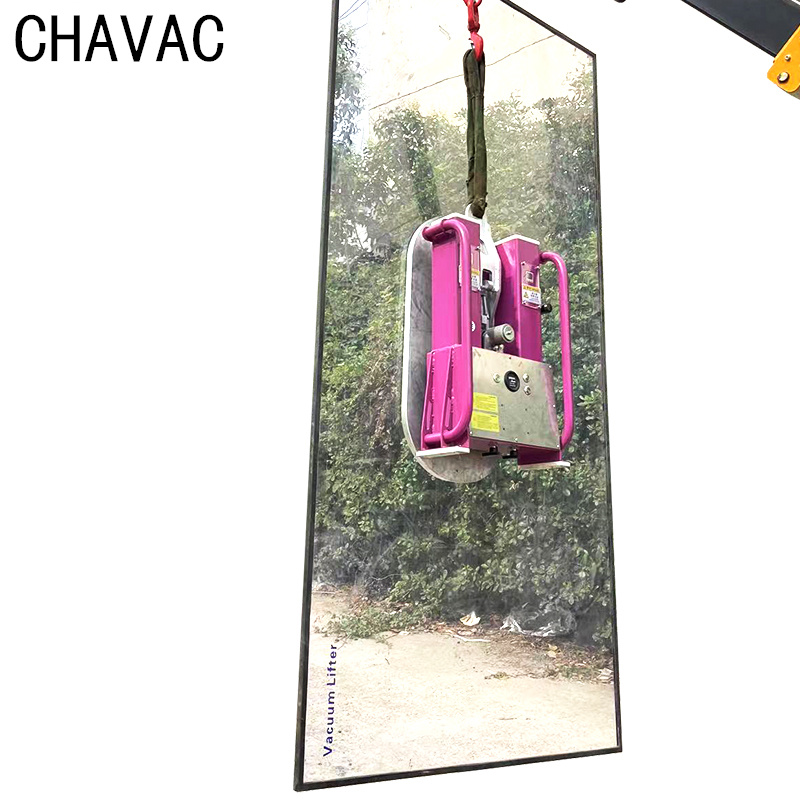

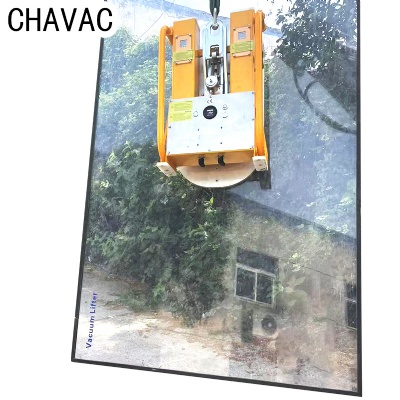

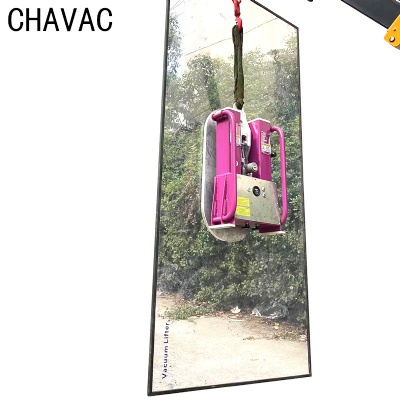

YILUCHANGHONG suction caps are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble.
GL-SC-D500 | GL-SC-D750 | GL-SC-D250 | GL-SC-D375 | ||
Lifting Capacity | kg | 500 | 750 | 250 | 375 |
Net Weight | kg | 56 | 66 | 62 | 72 |
Pad Size | mm | 800*400 | 1000*500 | 800*400 | 1000*500 |
mm | 250 | 250 | 250 | 250 | |
Vacuum circuit(s) | / | Single-circuit | Single-circuit | Dual-circuit | Dual-circuit |
Packing Size | mm | 850*450*400 | 1050*550*400 | 850*450*400 | 1050*550*400 |
Battery | V/Ah | 12/12 | 12/12 | 12/12 | 12/12 |
Charger | V/A | 12/3 | 12/3 | 12/3 | 12/3 |
Power | V | 110/220 | 110/220 | 110/220 | 110/220 |
