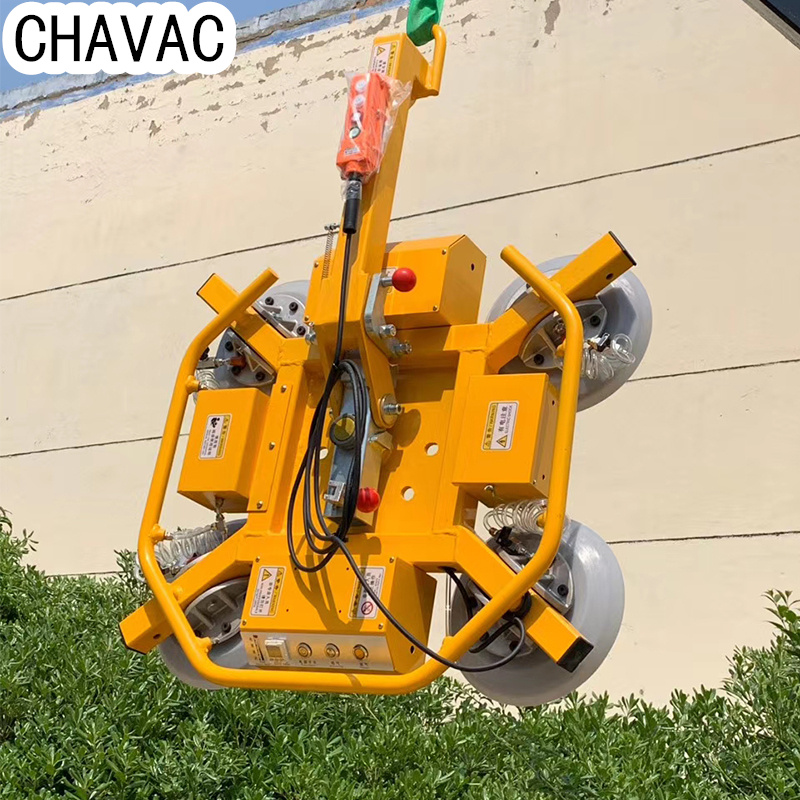

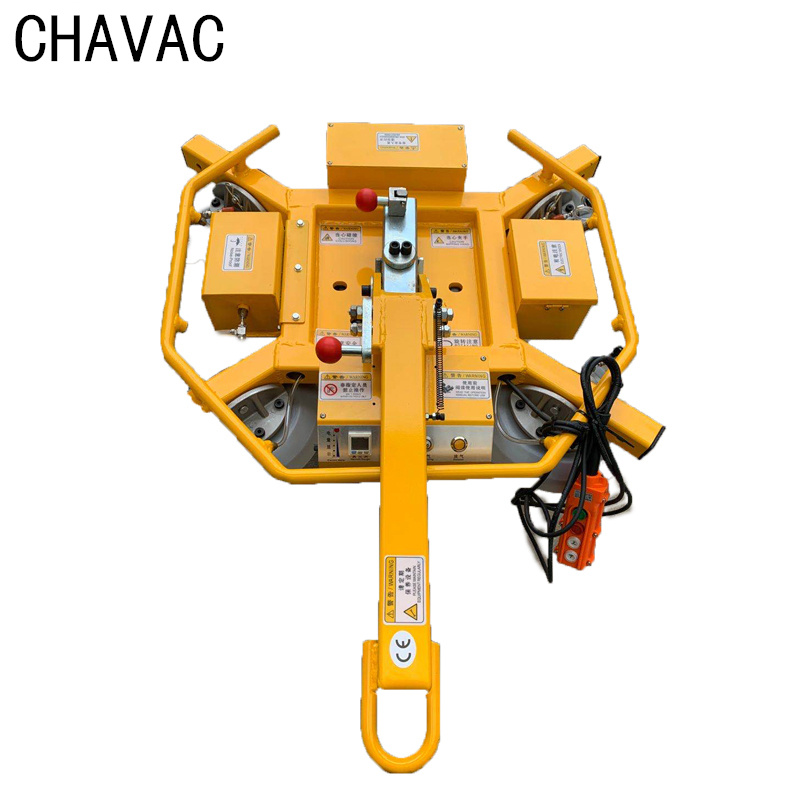

400kg 600kg 800kg 1000kg 1200kg Portable Vacuum Lift
Multi-function glass handling equipment with flexible structure and simple operation. Which can improve the production efficiency and reliability of construction sites and manufacturing workshops. Our equipment has a variety of assembly forms. It is able to assemble in various ways in accordance with demand. By changing position of suckers can realize absorbing glass with different shapes and dimensions. All functions can be done by hand,rotate 360°(manual)and tilt90°(manual),optional remote operation with electricity, safe and reliable.

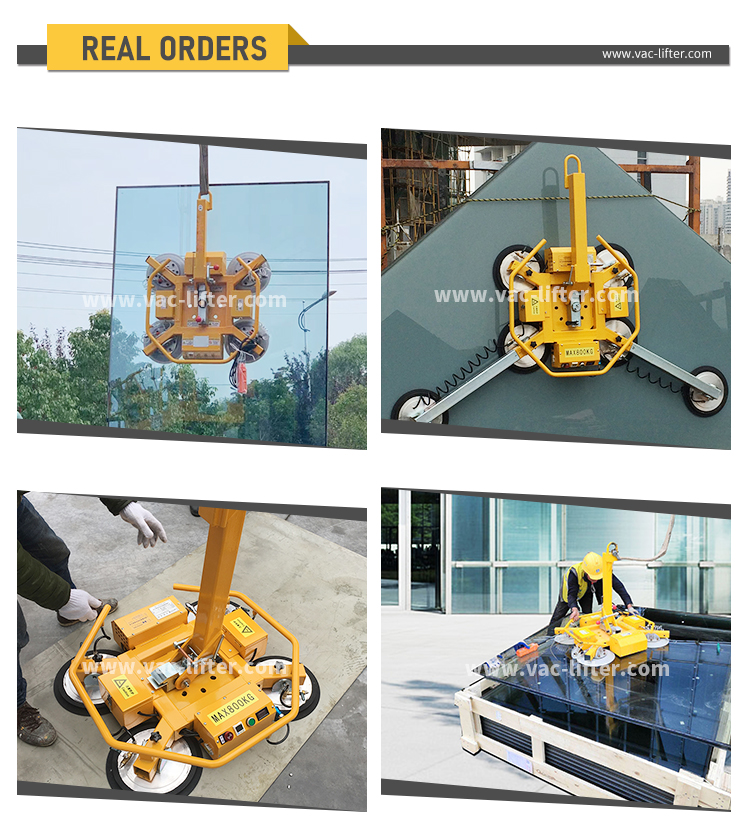

It is one of the most comonly used equipments for curtain wall installation and glass deep processing enterprises. The equipment components are all internationally renowned brands to ensure the quality and safety of equipment. The normal power supply voltage of the equipment is 110V to 220V , DC 12V battery. The device can automatically motor the vacuum and power systems to maximize safety and efficiency while simplifying maintenance and repairs.
Parameters
Model | GL-SC-400X | GL-SC-600X | GL-SC-800X | GL-SC-1000X | GL-SC-1200X | |
Lifting Capacity | kg | 400 | 600 | 800 | 1000 | 1200 |
Cup Qty | / | 4 | 6 | 8 | 10 | 12 |
Single Cup Size | mm | 300 | 300 | 300 | 300 | 300 |
Single Cup Lifting Capacity | kg | 100 | 100 | 100 | 100 | 100 |
Rotation | / | 360°manual rotate / optional automatic rotate | ||||
Tilting | / | 90° manual / optional automatic tilting | ||||
Volte | V | DC12 | ||||
Charger | V | AC220/110 | ||||
Weight | kg | 70 | 90 | 100 | 110 | 120 |
Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 | 1900*1600*300 |
Extension Bar Length | mm | 500 | ||||
Control System | / | Integrated Control Cabinet and Wired Remote Control | ||||
Overall Size after packing by wooden box | mm | 1230*910*390 | ||||
Gross Weight after packing by wooden box | kg | 97 | 110 | 123 | 150 | 163 |
Optional electric or battery power,give free spare parts
Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.

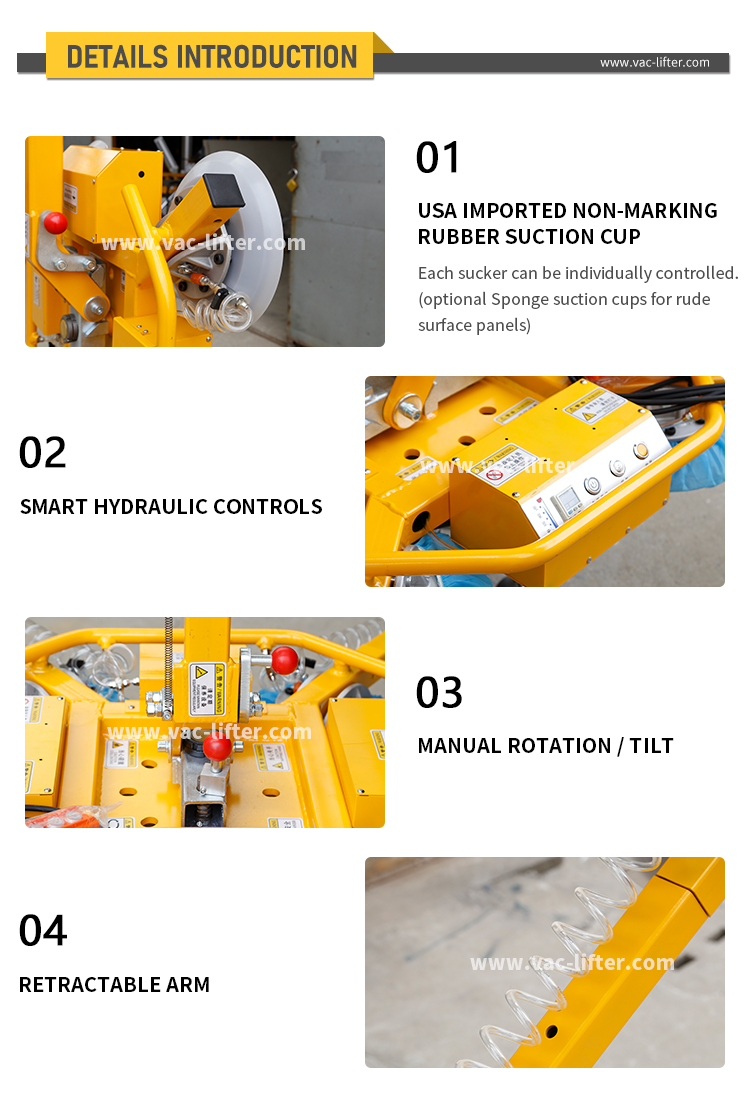

1)The US imported silicone raw material suction cup, good adsorption, anti -aging
2)Design of Thomas vacuum system in the United States, safe and efficient
3)Japanese Panasonic Vacuum Sensor with automatic starting motion stop function, sensitive response, stable performance
4)With vacuum pressure auto supply system to ensure the whole vacuum system maintained at a relatively constant safety time, safer to use.
5)24V charger with intelligent repair function
6)Each suction cup has a vacuum control valve, which can be controlled separately to maintain convenient maintenance

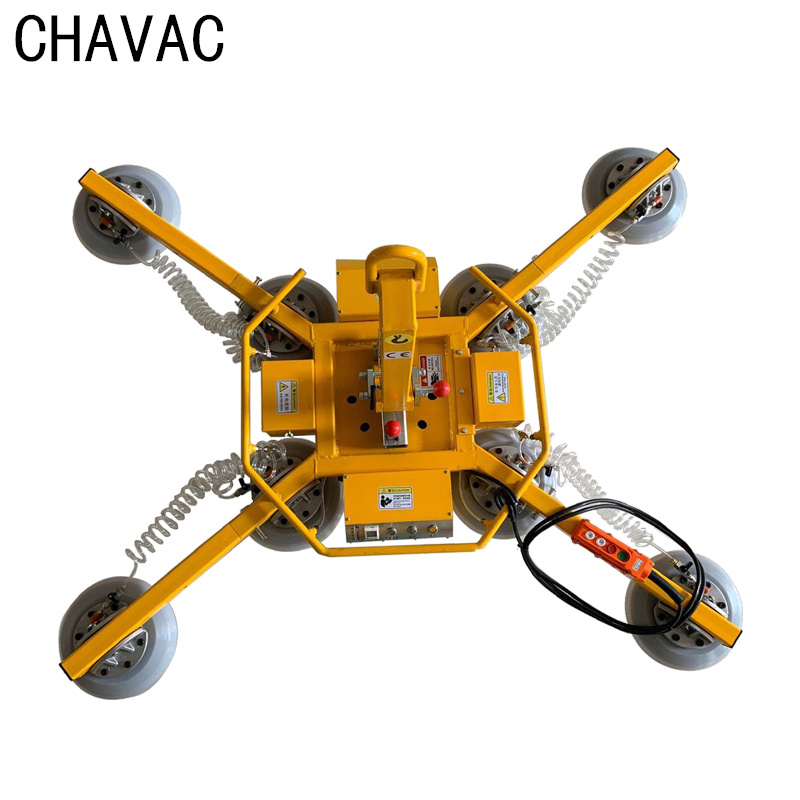

7)Adjustable design, can be changed the position of the suction cups and assembled in various ways according to needs, each suction equipped with a separate control valve, can handle glass of different shapes and sizes.

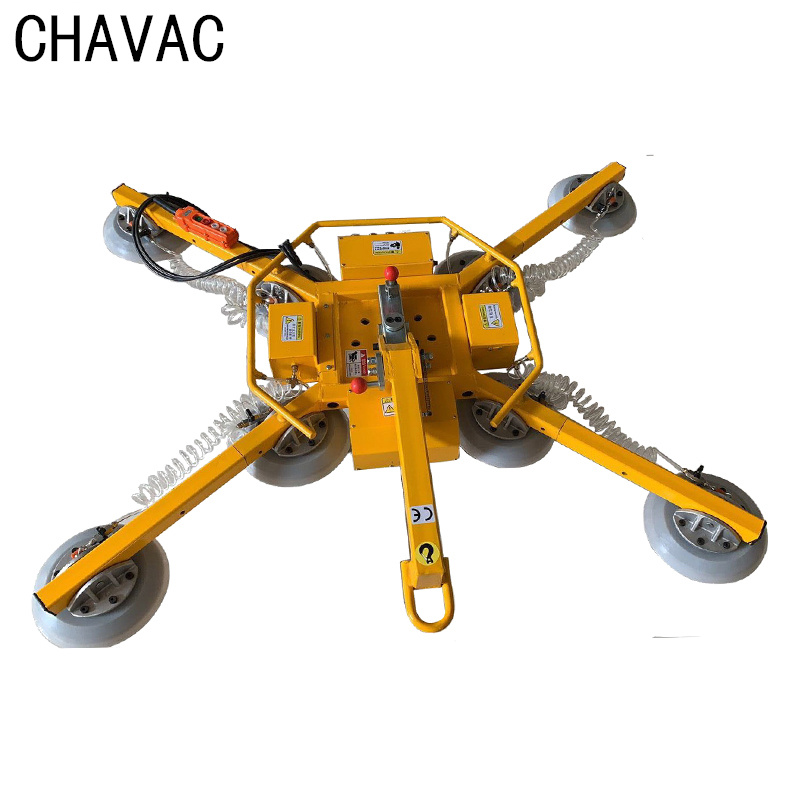

8)The suction cup can extend (H -type)
