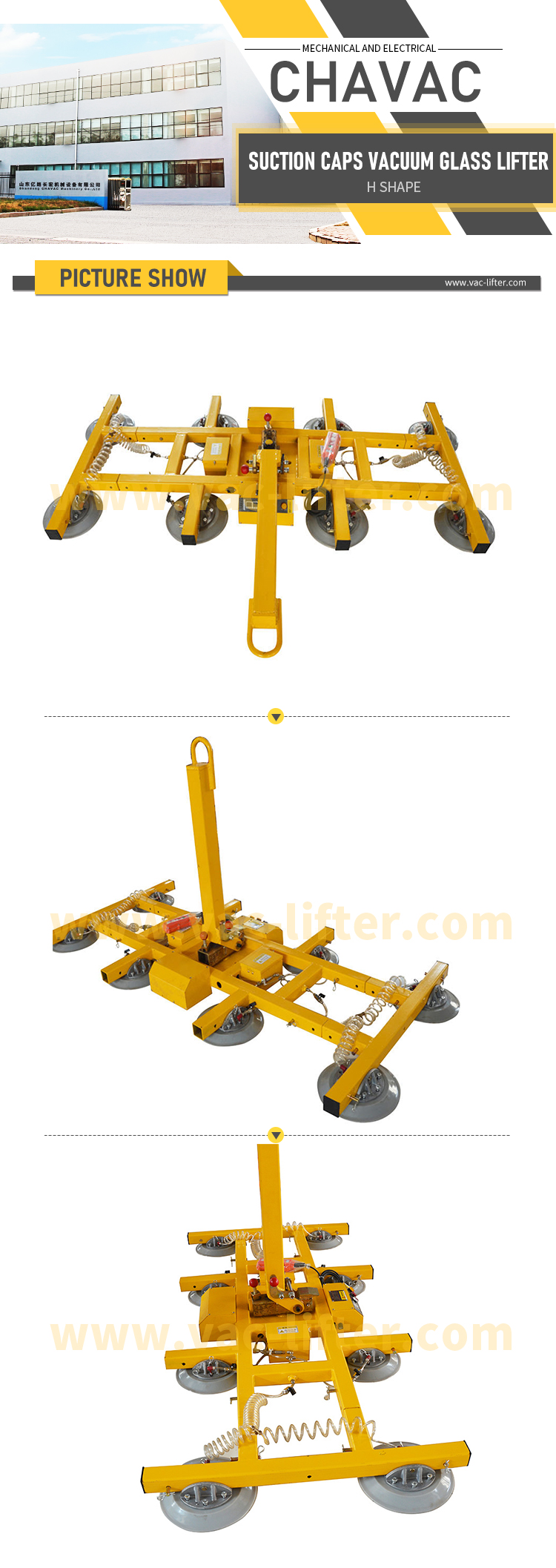

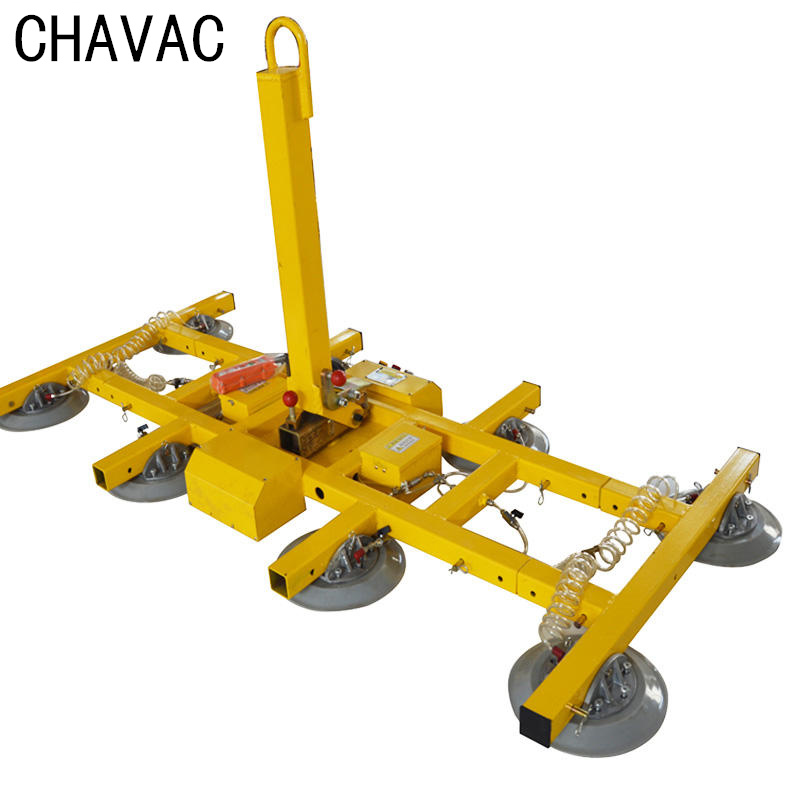

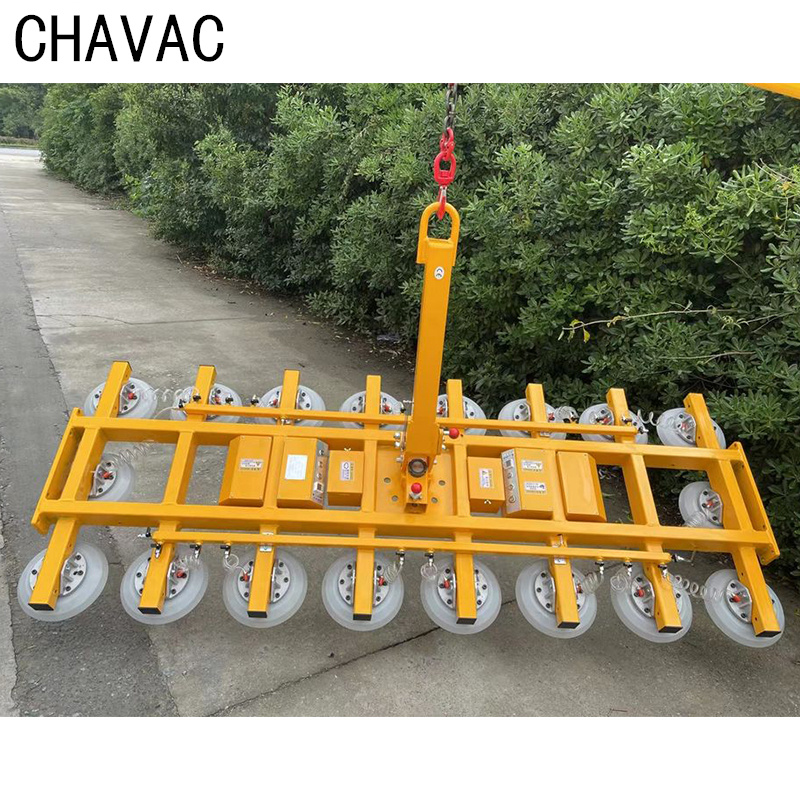

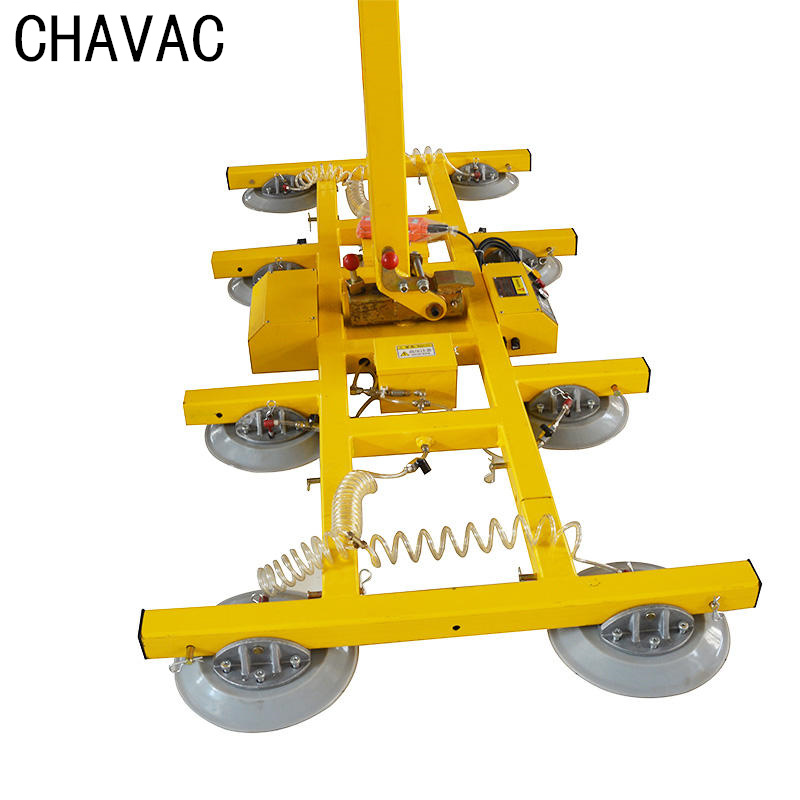

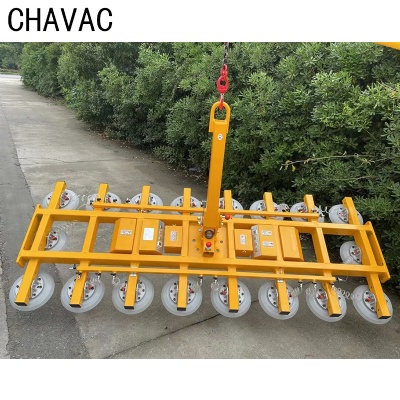

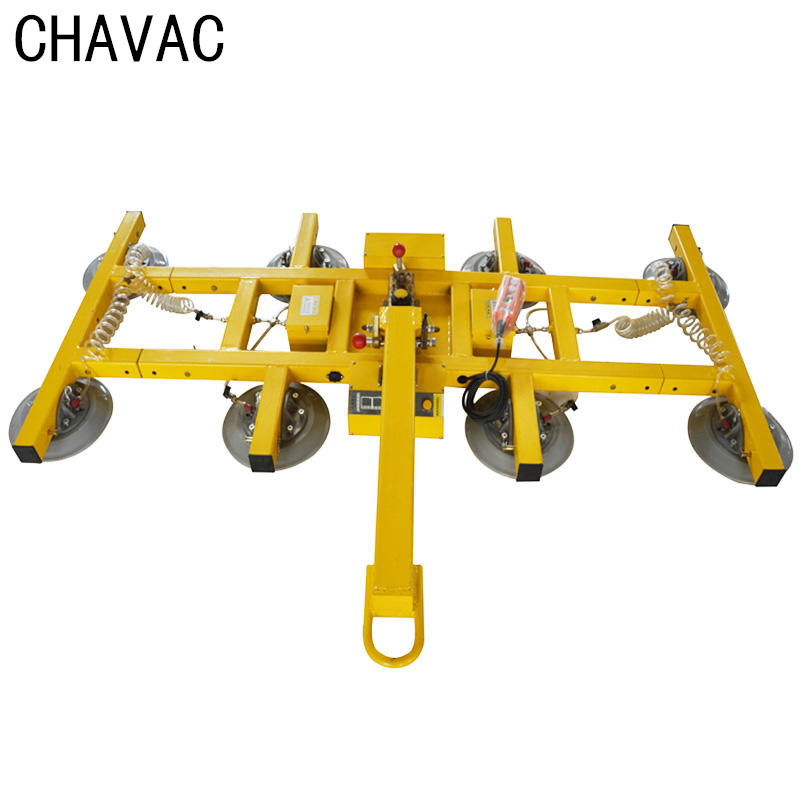

Heavy Suction Vacuum Lift for Installing Glass

Multi-function glass handling equipment with flexible structure and simple operation. Which can improve the production efficiency and reliability of construction sites and manufacturing workshops. Our equipment has a variety of assembly forms. It is able to assemble in various ways in accordance with demand. By changing position of suckers can realize absorbing glass with different shapes and dimensions. All functions can be done by hand,rotate 360°(manual)and tilt90°(manual),optional remote operation with electricity, safe and reliable.

It is one of the most comonly used equipments for curtain wall installation and glass deep processing enterprises. The equipment components are all internationally renowned brands to ensure the quality and safety of equipment. The normal power supply voltage of the equipment is 110V to 220V , DC 12V battery. The device can automatically motor the vacuum and power systems to maximize safety and efficiency while simplifying maintenance and repairs.

Parameters

Optional electric or battery power,give free spare parts

Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.

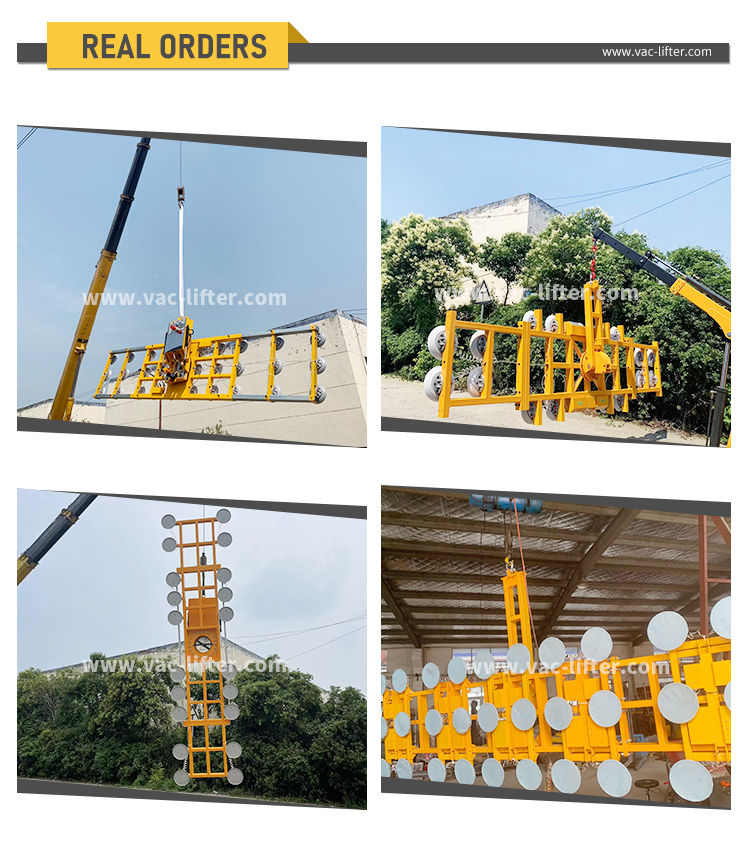

1.Sealed cover for components protection,safe and reliable. Usually cooperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job .

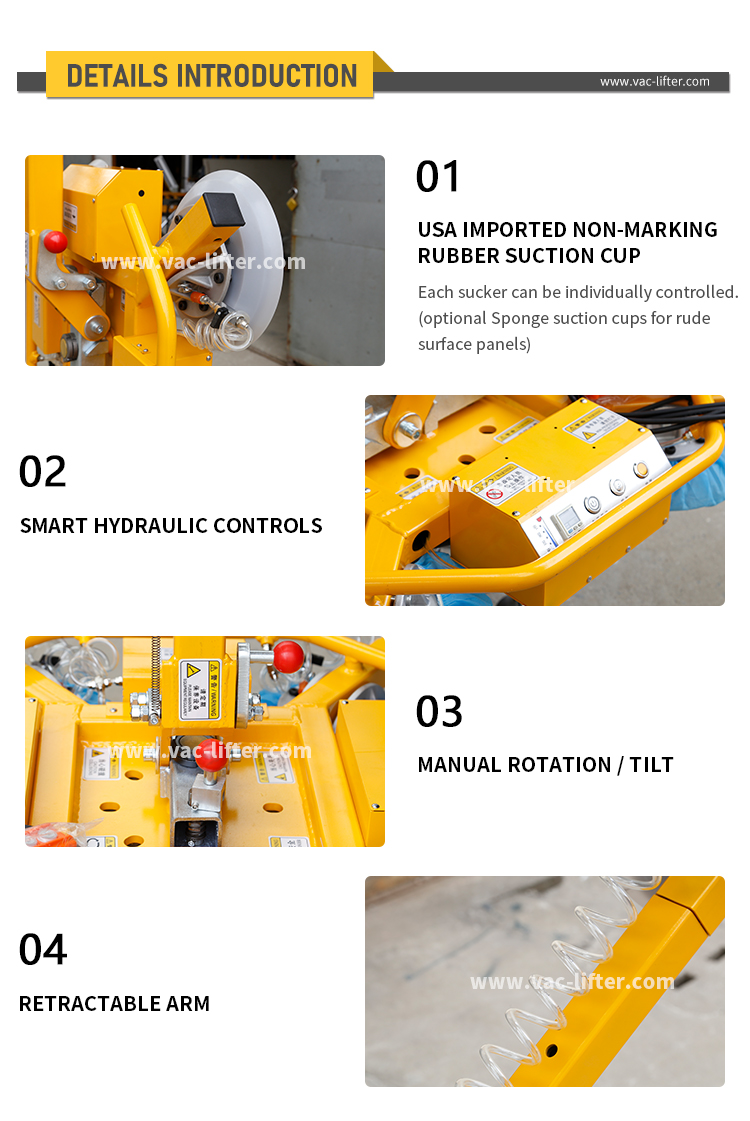

2.Adjustable type, can be changed the position of the suction cup to absorb glass of different shapes and sizes (also can be customized according to the glass size)

3.Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric

4.Adopt American THOMAS vacuum pump and high quality maintenance-free battery, no need the air source or power supply during use.

5.Japan Panasonic digital display vacuum pressure switch , battery fuel gauge, clearly monitor the safty use.

6.With vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value

7.Equipped with the power-cut but pressure-keeping device and alarm device. If power failure accidently,the pressure-keepping function can extend the handling time and make the use safer.

8.Equipped with 12V backup battery, can be replaced in time to ensure the progress of the project.
